Gazco Balanced Flue Gas Stove

• Glass Fronted Log Flame Effect
• Up to 90.8%
• Up to 5.4kW
• Flue Type:
• Manual Control as standard

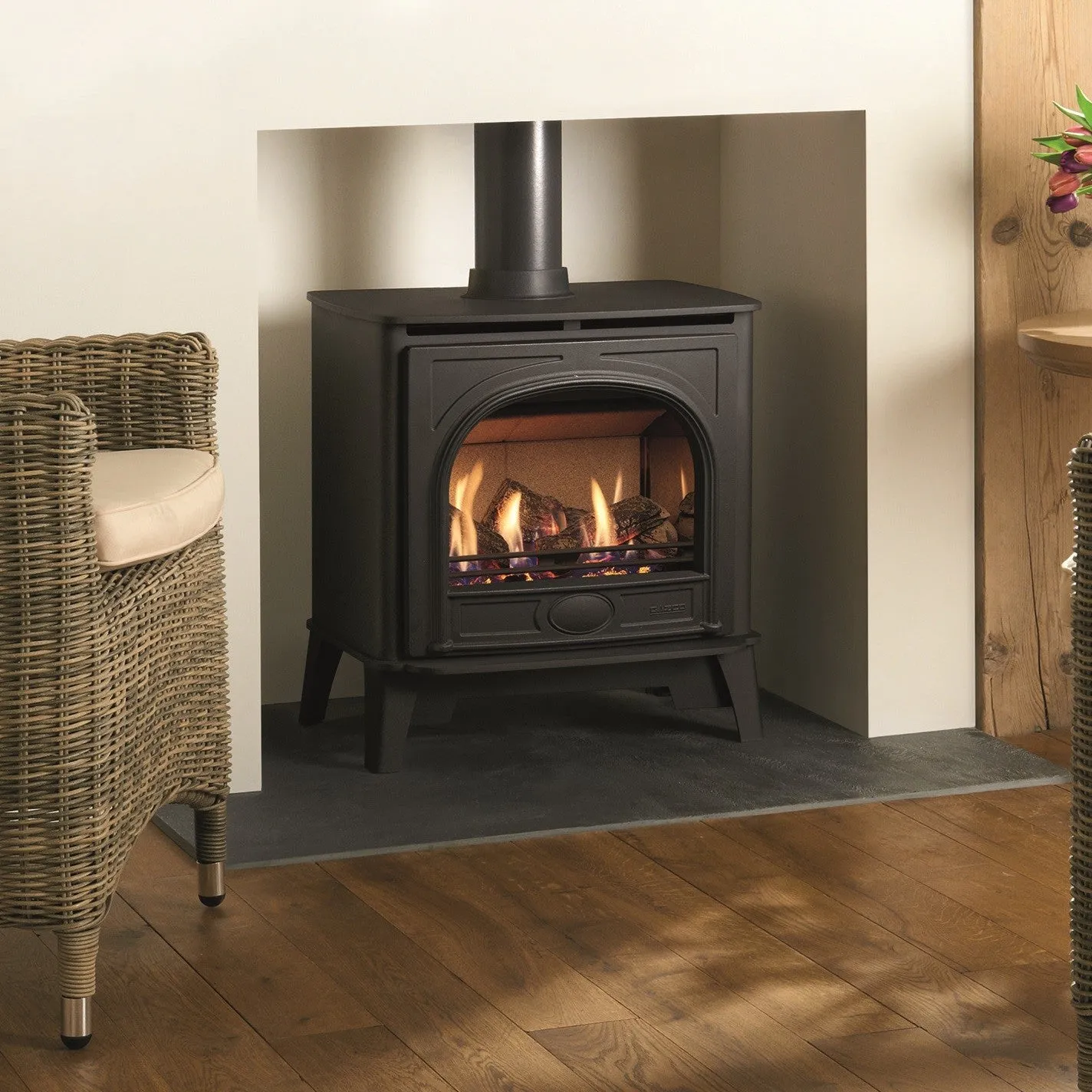

Gazco Medium Stockton2 Balanced Flue Gas Stove

Using cast iron for the door and heavy gauge steel for the body, Gas Stockton2 stoves combine simple, understated lines with Gazco’s superb living flame technology.

Gazco Medium Stockton2 Balanced Flue Gas Stove Specification:
Safety Flame Supervision Device (FSD)
Airwatch System
Type of Heat: Radiant & Convection.
Heating Efficiency: 90.8%
Heat Input High: 6.6kW
Heat Output High: 5.4kW
Heat Output Low: 2.5kW

Fuel Bed Options:
Log Effect Fuel bed with Emberglow

Control Options:
Manual With Upgradable Remote Control Options Below.
Optional Standard Remote Kit.
Optional Thermostatic Remote Kit.

Colour Options:
Matt Black

Gas Stove minimum clearances required between stove and other surfaces:
From Top: 225mm
From Sides: 150mm
From Rear: 50mm

There are 2 Balance Flue kits available, these are as follows:

Balance Flue Option 1: Out The Back (Rear Exit)
Components: 1 X 660mm terminal length & Terminal With Guard

Balance Flue Option 2: Up & Out (Vertical Exit 90 Degree Bend) (Kit Number: 8567)
Colour: Stainless Steel
Components (1 X 940mm Straight, 1 X 462mm terminal length & 1 X 90 Degree Bend)
(NB Guard Required for below 2m)

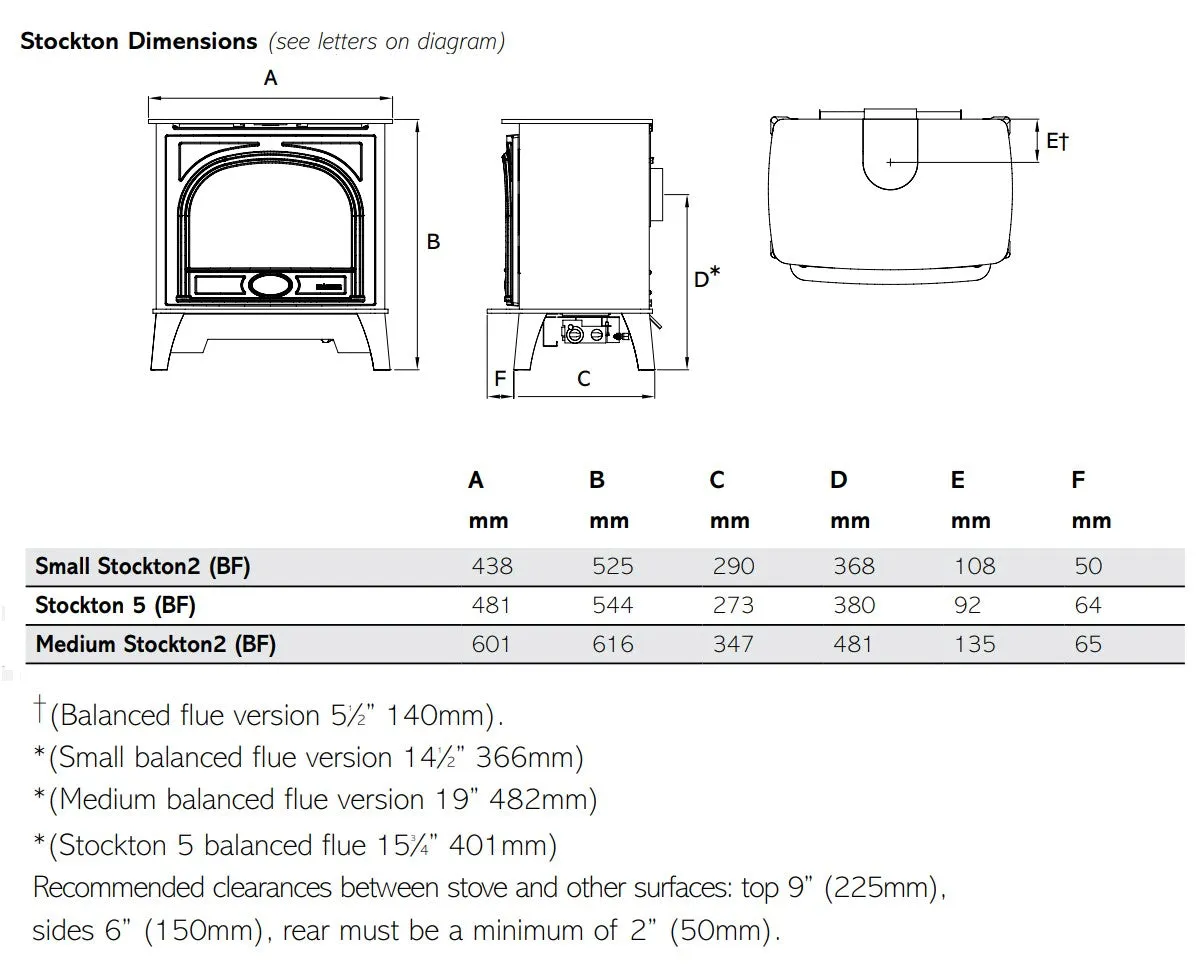

Technical Drawing - Sizes:

As a -this appliance will result in a higher BER rating in your Irish home.
